  • Brand   Tipower
  • Type   YCL
  • Inquire Now

YCL series moors are totally enclosed fan cooled(TEFC)heavy-duty single-phase induction motors

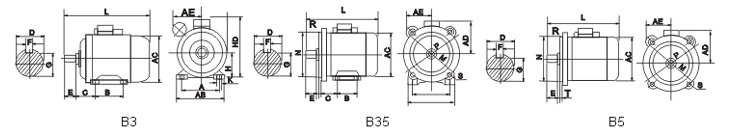

The mounting dimension is fully conformed with IEC standard When rated output is 3HP or below,
motors are of capacitor start,and 4HP or above with capacitor start and run.

YCL series motors are integrated with up-to-date design,best quality materials construction,
and possess the features of pleasant-looking appearance outstanding performance,easy maintenance
They also concentrate the advantages of high starting torque,smooth turning,low temperature rise.
10w noise and great overload performance.

YCL series motors are suitable for powering small type drilling machines and water pumps.especially for family
workshops where only single—phase current supply is available.

Operating Conditions
Ambient temperature : -15040
Altitude: Not exceeding 1000 meters
Rated voltage: 220V5%
Rated frequency: 50HZ/60HZ
Duty/Rating: Continuous (S1)
Insulation class: Class B
Protection class: IP44
Cooling type: Ic0141
